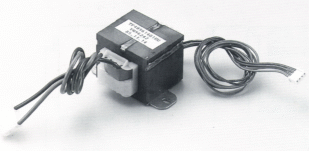

| Power Transformers | |
| YNO-EI-PIN Type to UL standards | |
 |
|
| Type |
VA |
A |
B |
C |
D |
E |
F |
Ø |
|
YNO 28-13 |
1.0 |
28.5 |
26.0 |
32.0 |
13.0 |
38.0 |
46.0 |
3.5-5.5 |
YNO 35-10 |
1.5 |
35.5 |
30.5 |
32.0 |
10.0 |
45.0 |
55.0 |
3.5-5.5 |
YNO 35-13 |
2.0 |
35.5 |
30.5 |
35.0 |
13.0 |
45.0 |
55.0 |
3.5-5.5 |
YNO 41-16 |
4.0 |
41.5 |
34.0 |
38.0 |
16.0 |
52.0 |
60.0 |
3.5-5.5 |
YNO 41-20 |
5.0 |
41.5 |
34.0 |
40.0 |
20.0 |
52.0 |
60.0 |
3.5-5.5 |
YNO 41-40 |
10.0 |
41.5 |
34.0 |
60.0 |
40.0 |
52.0 |
60.0 |
4.5-6.5 |
YNO 48-18 |
8.0 |
48.5 |
41.0 |
43.0 |
18.0 |
63.0 |
73.0 |
4.5-6.5 |
YNO 48-20 |
9.0 |
48.5 |
41.0 |
45.0 |
20.0 |
63.0 |
73.0 |
4.5-6.5 |
YNO 48-25 |
10.0 |
48.5 |
41.0 |
48.0 |
25.0 |
63.0 |
73.0 |
4.5-6.5 |
YNO 48-30 |
17.0 |
48.5 |
41.0 |
53.0 |
30.0 |
63.0 |
73.0 |
4.5-6.5 |
YNO 48-35 |
18.0 |
48.5 |
41.0 |
58.0 |
35.0 |
63.0 |
73.0 |
4.5-6.5 |
YNO 48-40 |
20.0 |
48.5 |
41.0 |
65.0 |
40.0 |
63.0 |
73.0 |
4.5-6.5 |
YNO 57-25 |
18.0 |
57.5 |
48.5 |
52.0 |
25.0 |
70.0 |
84.0 |
4.5-6.5 |
YNO 57-30 |
20.0 |
57.5 |
48.5 |
57.0 |
30.0 |
70.0 |
84.0 |
4.5-6.5 |
YNO 60-25 |
25.0 |
60.5 |
51.0 |
55.0 |
25.0 |
75.0 |
90.0 |
4.5-6.5 |
YNO 60-30 |
30.0 |
60.5 |
51.0 |
60.0 |
30.0 |
75.0 |
90.0 |
4.5-6.5 |
YNO 66-25 |
32.0 |
66.5 |
56.0 |
60.0 |
25.0 |
81.0 |
92.0 |
4.5-6.5 |
|
YNO 66-36 |
40.0 |
66.5 |
56.0 |
65.0 |
36.0 |
81.0 |
92.0 |
4.5-6.5 |
| Minimum Order Quantity (MOQ) = Please enquire | |
  |
units
in mm
