| Power Transformers | |

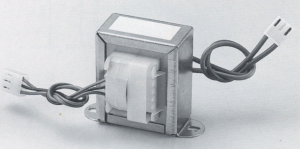

| YNN-EI-WIRE Type to VDE standards | |
 |
|
| Type |
VA |
A |
B |
C |
D |
E |
F |
Ø |
YNN 28-13 |
1.0 |
27.0 |
31.0 |
32.0 |
14.5 |
33.0 |
43.0 |
3.5-5.5 |
YNN 35-10 |
1.5 |
32.0 |
37.0 |
32.0 |
12.0 |
40.0 |
48.0 |
3.5-5.5 |
YNN 35-13 |
2.0 |
32.0 |
37.0 |
35.0 |
14.5 |
40.0 |
48.0 |
3.5-5.5 |
YNN 41-16 |
4.0 |
36.0 |
45.0 |
38.0 |
18.0 |
44.0 |
53.0 |
4.0-5.5 |
YNN 41-20 |
5.0 |
36.0 |
45.0 |
40.0 |
20.0 |
44.0 |
53.0 |
4.0-5.5 |
YNN 48-16 |
6.0 |
43.0 |
52.0 |
43.0 |
18.0 |
51.0 |
63.0 |
4.5-6.5 |
YNN 48-20 |
8.0 |
43.0 |
52.0 |
45.0 |
22.0 |
51.0 |
63.0 |
4.5-6.5 |
YNN 48-25 |
10.0 |
43.0 |
52.0 |
48.0 |
26.5 |
51.0 |
63.0 |
4.5-6.5 |
YNN 57-25 |
18.0 |
51.0 |
61.0 |
52.0 |
26.5 |
60.0 |
73.0 |
4.5-6.5 |
YNN 57-30 |
20.0 |
51.0 |
61.0 |
57.0 |
31.5 |
60.0 |
73.0 |
4.5-6.5 |
YNN 60-25 |
25.0 |
53.0 |
64.0 |
55.0 |
27.0 |
65.0 |
76.0 |
4.5-6.5 |
YNN 60-30 |
30.0 |
53.0 |
64.0 |
60.0 |
32.0 |
65.0 |
76.0 |
4.5-6.5 |
YNN 66-25 |
32.0 |
58.0 |
70.0 |
60.0 |
27.0 |
70.0 |
81.0 |
4.5-6.5 |
YNN 66-36 |
40.0 |
58.0 |
70.0 |
63.0 |
38.0 |
70.0 |
81.0 |
4.5-6.5 |
YNN 76-40 |
65.0 |
66.0 |
78.0 |
70.0 |
42.0 |
75.0 |
92.0 |
5.0-7.0 |
YNN 76-75 |
75.0 |
66.0 |
78.0 |
75.0 |
47.0 |
75.0 |
92.0 |
5.0-7.0 |
| Minimum Order Quantity (MOQ) = Please enquire | |
  |
units
in mm
