| Power Supplies - Switch Mode Regulated | |||
 |
 |
 |
 |
C=UK |
B=EU |
D=Australian |
A=US |
| Input Styles | ||||||||
| 15 - 18 Watt Plug In Power Supplies | Safety Approvals: | |||||||
| UL1310, GS EN60950, CB IEC60950 | ||||||||
| CE EN55022, FCC Class B | ||||||||
| Features |
Model |
Max Power |
Output Voltage |
Information | ||||
| 100 to 240VAC Universal Input | SP090150S* | 15W | 9.00 vDC @ 1.66A |

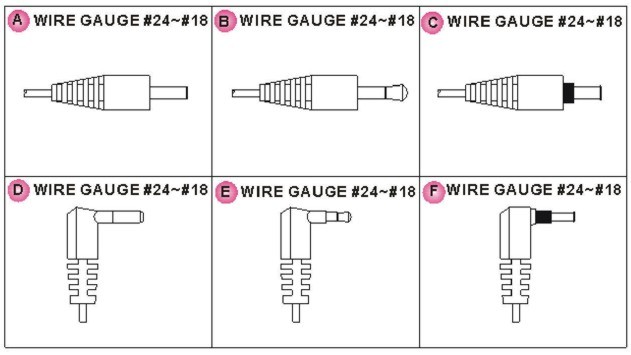

* = Input Style Typical connectors |
||||
| 5 - 18W Single Output | SP120150S* | 15W | 12.00 vDC @ 1.25A | |||||
| Input Specifications | SP150150S* | 15W | 15.00 vDC @ 1.00A | |||||
| Input Voltage: 90VAC to 264VAC | SP180150S* |
15W |
18.00
vDC @ 0.83A |
|||||
| Input Frequency: 50/60Hz | SP240150S* |
15W |
24.00
vDC @ 0.62A |
|||||
| Inrush Current: 15A@115VAC, 30A@230VAC | SP120180S* |
18W |
12.00
vDC @ 1.50A |
|||||
| Earth Leakage: 0.2mA Max:@110VAC, 0.4mA Max@230VAC | SP150180S* |
18W |
15.00
vDC @ 1.20A |
|||||
| Output Specification | SP180180S* | 18W | 18.00 vDC @ 1.00A | |||||
| Line Regulation: +/- 1% | SP240180S* |
18W |
24.00
vDC @ 0.75A |
|||||
| Load Regulation +/- 5% |
|
|||||||
| Ripple: 2% P-P Max | ||||||||
| Protections | ||||||||
| Over Power, Over voltage, Short Circuit | ||||||||
| General Specifications | ||||||||
| Efficiency: 80% typical | ||||||||
| Switching Frequency: 60kHz | ||||||||
| Dielectric Withstand | ||||||||
| Input/Output 3000VAC | ||||||||
| Input/Ground 1500VAC | ||||||||
